Galvanised Iron Barbed Wire Fencing Tapes
We offer five types of barbed wires according to materials:
Electro galvanized;
Hot-dip zinc-plating;
PVC coated galv.;
PE coated galv.;
Stainless steel.
Besides traditional barbed wires, we also supply razor type barbed wire, which offers sharper blade and better security for protecting.
Barbed Wire Tape is used individually or together with different fences.
Galvanized Iron Barbed Tape
Materials: Q195 and Q235
Surface treatment: HDG (hot dip galvanized), EG (electro galvanized) and PVC coated
Tensile of Strength: Soft: 380-550N/mm2 ; high tensile strength:800-1200N/mm2
Style: Galvanized Barbed Wire with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Application: Fencing for industry, agriculture, animal husbandry, dwelling house, plantation or farms.
Packing: in coils.

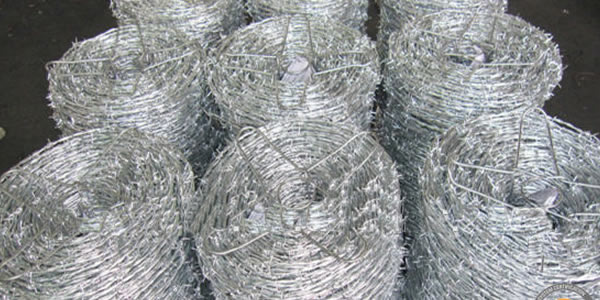

Barbed wire 14x14 wire gauge, wound into coils for easy transport

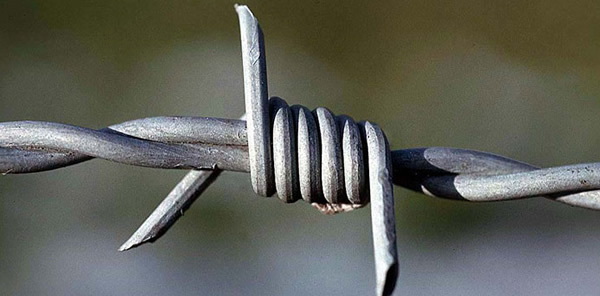

Double TwistED Barb Wire, electro galv.

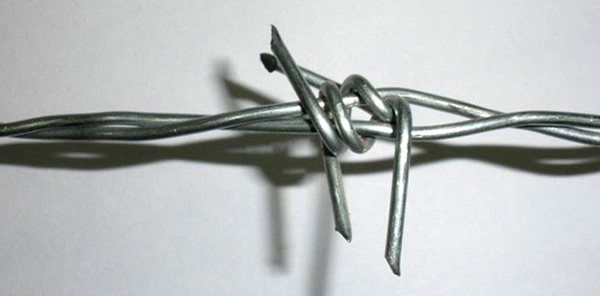

Reverse Twisted Barbed Wire

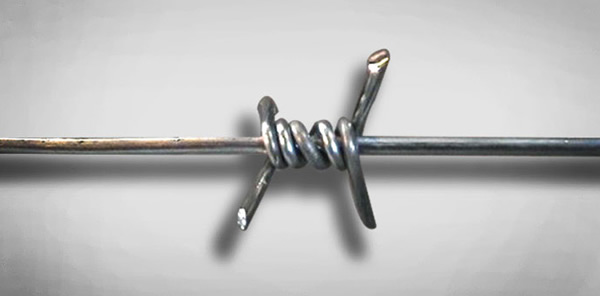

Straight Twisted Barbed Wire, Hot dip galvanized

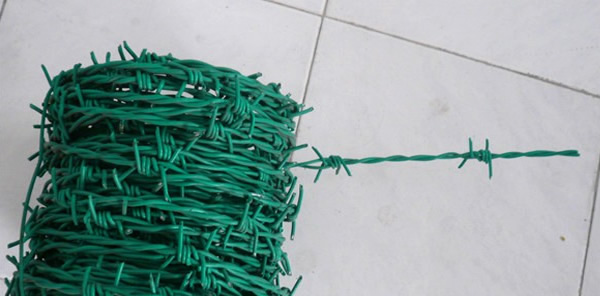

PVC Coated Barbed Iron Wire
- Core wire can be galvanized iron wire or black annealed iron wire.
- A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coating.
- Tensile strength is 30-45 kgs./sq.mm.
- Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
ANTI CLIMBING PVC Coated Barbed Wire in 16 x 14 gauge, double twisted, packed in 25kg coil
Specifications
Single Wire Barbed Wire
| Wire BWG | Barbed Distance |
| 18*18 | 5-15cm |
| 20*20 | |
| 22*20 | |
| 22*22 | |
| 25*22 | |
| 26*22 | |
| 27*22 | |
| 28*22 | |
| 30*22 |
Double Twist Barbed Wire
| Wire BWG | Long m/kg | |||
| Barbed Distance 3" | 4" | 5" | 6" | |
| 12*12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
| 12*14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2*12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
| 12-1/2*14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
| 13*13 | 7.9808 | 8.899 | 9.5721 | 10.553 |
| 13*14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2*14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14*14 | 10.4569 | 11.659 | 12.5432 | 13.1752 |
| 14-1/2*14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15*15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
| 15-1/2*15-1/2 | 15.3491 | 17.1144 | 18.406 | 19.3386 |
PVC Barbed Wire
| Wire Diameter | Outside Wire Diameter | Distance Barbed | Long Of Barbed |
| 1.0-3.5mm | 1.4-4.0mm | 7.5-15cm | 1.5-3cm |
| BWG 11-20 | BWG8-17 | ||
| SWG 11-20 | SWG8-17 | ||
| PVC Thickness 0.4-0.6mm | |||
Packing Details:
Barbed Wire (Wire Gauge) |
Packing 10kgs / Coil |
1*20'FCL Quantity |
16GA*16GA |
160M/coil |
15TONS |
16GA*14GA |
125M/coil |
16TONS |
14GA*14GA |
100M/coil |
17TONS |
14GA*12GA |
80M/coil |
18TONS |
12GA*12GA |
65M/coil |
19TONS |
15kgs/coil |
||
Barbed Wire (Wire Gauge) |
Packing 10kgs/coil |
1*20'FCL Quantity |
16GA*16GA |
240M/coil |
15TONS |
16GA*14GA |
180M/coil |
16TONS |
14GA*14GA |
150M/coil |
17TONS |
14GA*12GA |
120M/coil |
18TONS |
12GA*12GA |
100M/coil |
19TONS |
25kgs/coil |
||
Barbed Wire (Wire Gauge) |
Packing 10kgs/coil |
1*20'FCL Quantity |
16GA*16GA |
400M/coil |
16TONS |
16GA*14GA |
300M/coil |
17TONS |
14GA*14GA |
250M/coil |
18TONS |
14GA*12GA |
200M/coil |
19TONS |
12GA*12GA |
160M/coil |
20TONS |
