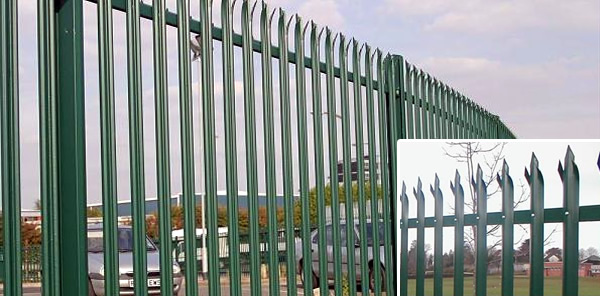

Steel Palisade Fence of W, D and Angle Iron Profile, for Perimeter Security

Palisade fence is designed to deter general attack from all types and conditions of intrusion. The pales are made of hot formed and cold rolled steel belts. These panels offer both strength and rigidity combined with a long life span.

This type of steel fence is normally produced with three types of pales, "W" profile, "D" profile and angle iron. The steel palisade can be used with anti climbing fence spikes for higher level security barrier system.

Palisade Panel Railings and Posts

Anti-thief High Security Steel Palisade with Spike, d profile, for telecommunication tower security, powder coating finish

Material
Steel palisade fence is manufactured with galvanized or PVC coated Steel bar welded together.
Finishes: Galvanized and color coated in various colors to blend with the environment. Powder coating material can be plastic / pvc, polyester or epoxy coating or bitumen coating.

Pales-"W" Section Palisade Fence
Most useful vertical type of pales for palisade fencing, first choice pales .

Width	Thickness	Surface Treatment	Head	Height
68mm - 70mm	2.0mm 2.5mm 3.0mm	Galvanized and  Electrostatic polyester  coated or Hot dipped galvanized	Single point Triple point	1200mm---3000mm

Pales-"D" section
Compared with "W" profile pales, "D" profile costs less.

Width	Thickness	Surface Treatment	Head	Height
60mm	2.0mm 2.5mm 3.0mm	Galvanized and  Electrostatic polyester coated  or Hot dipped galvanized	Single point Triple point	1200mm---3000mm

Pale-Angle Iron
Its cost is similar with "D" profile, but its structure is simpler than "D" profile.

Width	Thickness	Surface Treatment	Head	Height
40x40	2.0mm 3.0mm	Galvanized and  Electrostatic polyester coated  or Hot dipped galvanized	Single point	1200mm---3000mm

Post for Steel Palisade - IPE Type
A connection pipe between the fence panels.

Size	Thickness	Surface Treatment	Head	Height
100x55mm 100x68mm 120x74mm	3.5mm 4.0mm 4.5mm 5.0mm	Galvanized and  Electrostatic polyester coated  or Hot dipped galvanized	Cut sharp	On the fence  height basis

Rail- Angle Iron

It connects between pales and IPE post, which make the fence a whole panel.

Size	Thickness	Surface Treatment	Holes	Length
50x50 40x40	5.0mm 6.0mm	Galvanized and  Electrostatic polyester coated  or Hot dipped galvanized	With19 holes drilled  on one edge side	2710mm

Palisade fences are supplied in kit form, the systems are composed of palisate pales, palisate rails, fence post and fence fittings including fish plates, post clamps, bolts and nuts.

Fencing System Components

Components	Type	Number per Panel
Galv. or Coated Steel Post	I post, C post or square post	17
Galv. or Coated Steel Rail	Angle rail	1
Galv. or Coated Pale	W type,D type or angle rail	2 or 3, varies according to the fence height
Fittings	Finish pale	2
	Bolts & nuts	38

Anti-climb Security Spikes for Palisade Fence and Gates

Why Razor Spikes? The system which can be rapidly installed to existing structures and provide maximum security with ease. The anti climb spike lengths come in 1.45 metre & 1.8 metre, thickness:0.8mm-3mm, length of per piece: 50cm, 64cm, 100cm. Custom cut length can be provided according to fence panels length and on site requirement of the installations.

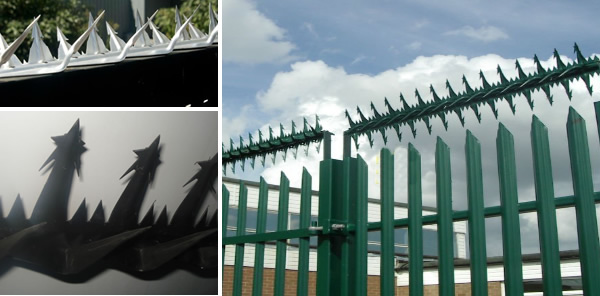

Adhesive Wall Spike Strips, on top rail of STEEL PERIMETER fence
