Galvanized and Coated Steel Chain Link Mesh Fencing System
Chain link wire mesh fabrics are used with security toppings for high security fencing uses.
Surface Treatment: Electro galvanized, Hot-dipped galvanized, Galv.+ PVC coated.
Powder Coated and Galvanised Chain Link Fence Panels and Rolls
Chain link netting is supplied with posts, caps, top rails, tubular line posts and gates with the same treatment. Powder coating finishes can be pvc coated or black vinyl coated.

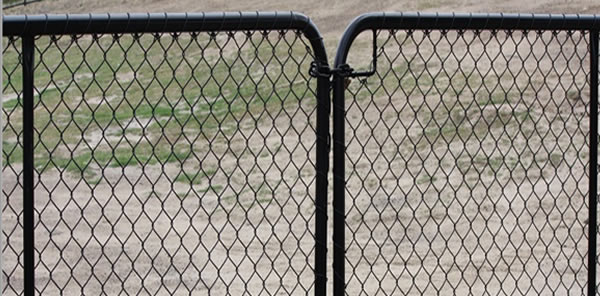

Black Vinyl Coated Swimming Pool Safety Fencing: The vinyl coating adds more protection against sunlight, acid water and other outdoor factors.
Modular Chain Link Fencing used as Basketball Sports Fence, Opening 2 inch in wire diameter 2.76 mm.
Popular Rhombic Mesh / Chain Link Mesh, Plastic Coated:
Mesh 1 INCH - WIRE 2.10mm
Mesh 1.1/2 INCH - WIRE 2.76mm
Mesh 1.1/2 INCH - WIRE 2.10mm
Mesh 2 INCH - WIRE 2.76mm
Mesh 2 INCH - WIRE 2.10mm
Mesh 2.1/2 INCH - WIRE 2.76mm
Mesh 2.1/2 INCH - WIRE 2.10mm
Mesh 3 INCH - WIRE 2.76mm
Mesh 4 INCH - WIRE 2.76mm
Made with galvanized steel chainlink mesh as base material then treated with plastic coating protection layer. Galvanizing can be either electro-galv. or hot dip galvanized.
Specification of PVC Coated Iron Chain Link Fence |
|||
Mesh |
Wire Diameter |
Width |
Length |
40 x 40 |
2.8 – 3.8 |
0.5 – 5.0 |
1 - 50 |
50 x 50 |
3.0 – 5.0 |
0.5 – 5.0 |
1 - 50 |
60 x 60 |
3.0 – 5.0 |
0.5 – 5.0 |
1 - 50 |
80 x 80 |
3.0 – 5.0 |
0.5 – 5.0 |
1 - 50 |
100 x 100 |
3.0 – 5.0 |
0.5 – 5.0 |
1 - 50 |
Specification of Galvanized Iron Chain Link Mesh:
| Mesh Opening of Chain Link Fabric | Wire Gauge (BWG) | Fence Weight (kg/m2) |
| 1/2" | 14 | 4.4 |
| 3/4" | 12 | 6.0 |
| 3/4" | 14 | 3.3 |
| 3/4" | 16 | 1.9 |
| 1" | 12 | 4.0 |
| 1" | 14 | 2.4 |
| 1" | 16 | 1.4 |
| 5/4" | 12 | 3.2 |
| Mesh Opening of Chain Link Fabric | Wire Gauge (BWG) | Fence Weight (kg/m2) |
| 5/4" | 14 | 1.92 |
| 3/2" | 10 | 4.0 |
| 3/2" | 12 | 2.7 |
| 3/2" | 14 | 1.6 |
| 2" | 8 | 4.16 |
| 2" | 10 | 3.0 |
| 2" | 11 | 2.5 |
| 2" | 12 | 2.0 |
Chain Link Fence Gates
The gates can be custom made into a range of styles, gate height and colors. We mainly supply walk-in gates, single swing gates, double swing gate, cantilever chain link gates without roller, or with roller. Major types illustrated as below.

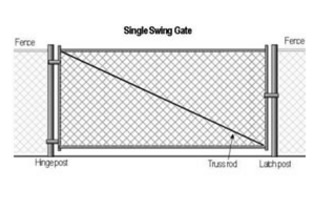

Single swing chain link gate can be made with a larger opening. It is open only by ensuring there is enough space. The fence gate can be automated.

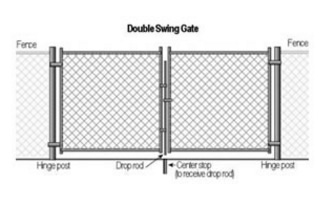

Double swing gate can be automated. Two Swings and a down pole connected to close the gate.

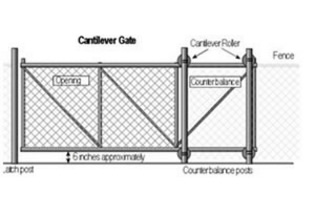

Cantilever Gate:
This gate can also be made with automated open.

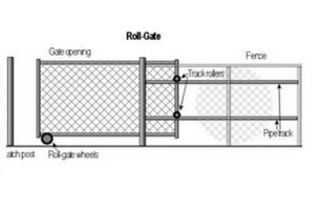

Cantilever Chain Link Fence Gate with a roller:
Rolling on the ground, connected to a rail fence. These doors do not automatically open, you need enough space to rollback.
Installation of Fencing Gates:
Step 1: Install the line post and terminal posts by using of tension bands, brace bands and bolts.
Step 2: Attach line post caps. Join the top rail with swaged end. Plain end of the top rail fits into rail end fittings on the terminal post.
Step 3: After assembling framework as above, unroll the chain link netting fabric on the ground along the fence line starting at terminal post.
Step 4: Then slide the tension bar through the last link in the fence fabric and attach this combination to the terminal post using tension band and bolts.
Step 5: Adjustment of mesh netting. If more or less netting fabric is required to span the opening, an additional amount can be connected or removed.
Step 6: The chain link fence netting shall be on the outside face of all posts and loosely attached to the top rail by a tie wire.
Fence Posts
Metal posts used for chain link fence can be Holland post, T post, round tube posts, peach post or square tube posts.
Types of Posts:
T post is also written as T bar post or American Standard Studded T Bar Post. The fence posts are divided into Euro post, American post or Australia Post according to different styles for target markets. T post can be designed with or without spades.
T-Post can be steel fence post with Black Bitumen Coating, powder pvc coating, T-Post galvanised.
The metal steel posts are mostly used with wire mesh fence fabrics as support parts for fencing system.
Major finishes: hot dipped galvanized steel posts, or powder coated pvc posts with black, green and other colors.
Billet Steel Studded T post:
Weight: 0.83, 0.85, 0.93, 0.95, 1.15, 1.25 and 1.33lbs
Painted or without paint
Available with spade or without spade
Material: rail steel and billet steel
American Style Studded Metal T Bar Post, 1.33lbs
Chain Link Perimeter Fence Systems with Security Topping

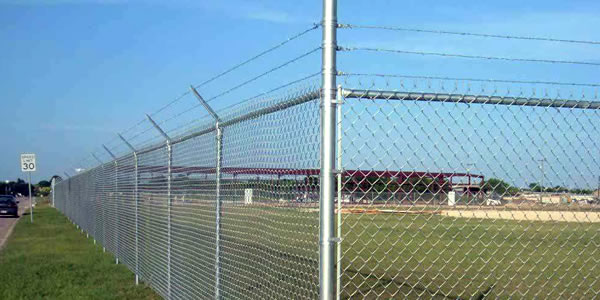

Chain Link Mesh + Barbed Wire
At the end of the fence column will be italic angle of 45 degrees contains 3 slots to enter Barbed wire. Also called barb wire support arms.
PVC coated Barbed wire: thickness 3 mm after coated
Arm angle 45 degrees: contains 3 slots to enter Barbed wire.
Three types of barbed wire toppings according to twisting methods:
1) single strand, 2) double strand double twisted and 3) double strand common twisted barbed wire. PVC coated or galvanized finishes.
Anti-Climbing Barbed Wire TOPPED modular Chain Link Fence Panels
Chain Link Net + Razor Wire Tapes
High security chain link fence has razor wire or concertina wire tapes to reinforce the security. Can be used for military uses.

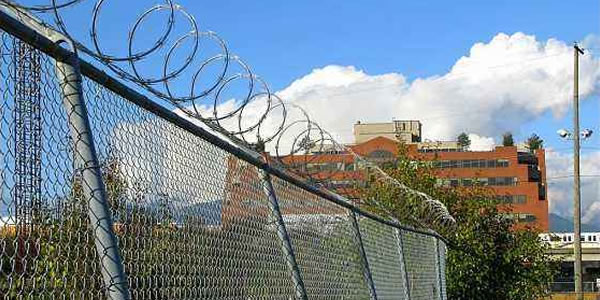

HDG Steel Fence post supported Hot Dip Galvanized Concertina Razor Coils for Chain Link Fencing Tops

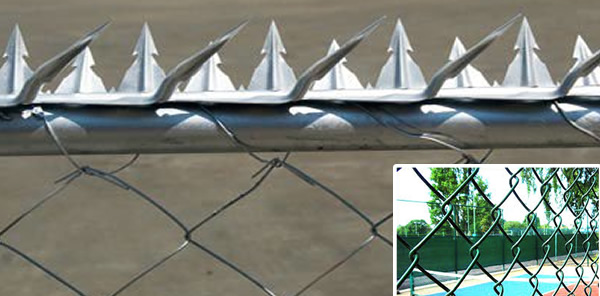

Chain Link Fence + Security Spikes
Chain Link fabric with Razor Fencing Strips MOUNTED on top rails
Blade security razor spikes are easy to install. Select the pre-punched holes required and fix with approximately 5 tamper-proof hammer drive zinc alloy fixers, self tap screws, blind rivets or wood screws.
The fencing rails are galvanized with the option of powder coating in a choice of colors, providing long term protection to your security investment.
Correctly installed on a proper structure, it provides a formidable barrier yet is aesthetically pleasing in appearance.
